CM Series Servo Control High Speed Rotary Paper Sheeters
CM series servo control high speed rotary paper sheeters are professional equipment for jumbo roll paper sheet cutting into required size. This model is one type of economic in price and most reliable function paper cutter machine.
jackli2002
E-mail Us
PDF Download
Video Link
| Product Detail | Online inquiry |
|---|

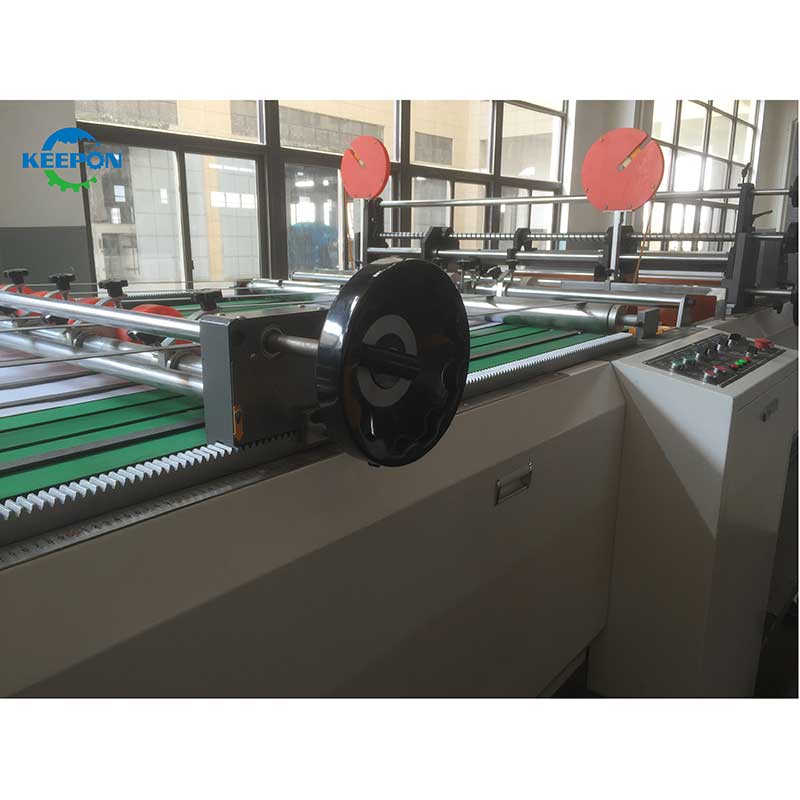

CM Series Servo Control High Speed Rotary Paper Sheeters
This series servo control rotary paper sheeter is fit for jumbo roll paper sheet into required size, with advanced technology from Europe, it has features of high speed, flexible unwinding unit, high production capacity and reliable working.
Technical Specifications:
|
PARAMETER |
|
|
Model |
CM-1400 (1100,1700,1900 size for choose) |
|
Cutting type |
The up knife cut reciprocally and the down knife is fixed |
|
Applicable range of paper |
60-550GSMg(30-50gsm paper cutting in lower speed) |
|
Max. paper roll diameter |
1800mm |
|
Max. paper-cutting width |
1400mm |
|
Range of cutting length |
450-1600mm |
|
Cutting sheet number |
2 sheet |
|
Cutting precision |
Cutting length 1000mm: ±0.5mm Cutting length>1000mm: ±0.1% |
|
Max. cutting speed |
300 cut/min |
|
Max. cutting meter speed |
300 m/min |
|
Max. paper stacking height |
1500mm |
|
Air pressure source requirement |
0.8Mpa |
|
Design power |
380V/220V*50HZ |
|
Gross weight |
11000kgs |
